How to generate random values in EV3

Sometimes we want our robots to have some kind of random behavior. In such cases we need to generate some random values. Now we will take a look at how we can achieve that by using the EV3 programming language.

#932
26 Sep 2018
Tweet

Body

Random block

The Random block is used to generate random values. It is the last block in the data palette and its icon is a dice. Take it and put it on the canvas:

From the drop-down menu we can see that the block has two modes - one for generating random numbers and one for generating random logic values i.e. True or False.

Numeric mode

First, let us take a look at the numeric mode. In that mode the block has two input parameters. The first one is for the lower bound

content picture

and the second one is for the upper bound.

content picture

The block has also one output parameter. It returns a random number between the lower bound and the upper bound with each number in between with equal probability.

Example

If you take a random block that generates a random number between 1 and 5 and you then pass the result from it to a switch block, which has the following cases:

the result will be as follows:

if the random block generates 1, the robot will display "one";
if the random block generates 2, the robot will display "two";
if the random block generates 3, the robot will display "three";
if the random block generates 4 or 5, the robot will display "greater than three".

Logic mode

Next, we have the logic mode. As mentioned above, we can randomly generate true or false using the logic mode. In that mode the block has only one parameter.

content picture

It is the probability of returning true in percents. The default value is 50 which means that true and false have equal probability. The output parameter returns true or false.

Courses and lessons with this Tutorial

This Tutorial is used in the following courses and lessons

Instructors Remote Training

If you are working with students and you want to introduce Robotics to your class or you want to mentor a FLL team, but you are insecure about your technical knowledge in the Robotics field, then this is the right place for you. Having in mind teachers' busy schedule, we have design two different schedules and added an option to design one just for you. FLLCasts's Mindstorms EV3 Robotics Online Training is the perfect match for any teacher.

After the completion of each task the participant has to upload his solution for verification.

136
280:11
156

Switch

Today we will focus on another block which will allow our robots to make decisions. This block is in the Flow Control palette and is called “Switch”.

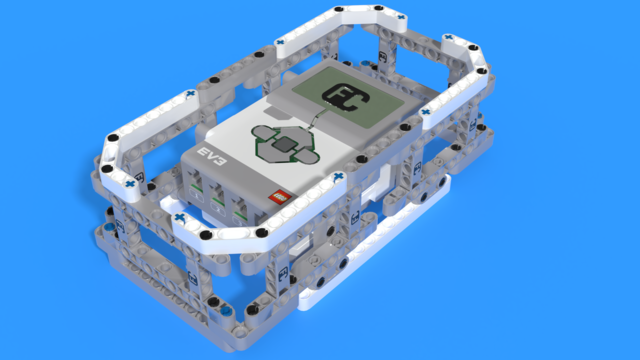

Robotics with LEGO - Level 4.0 - Kinesthetic and Memory Game (in development)
